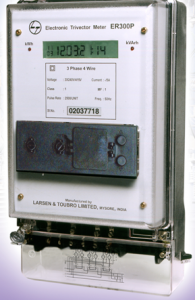

L&T TOD Meter
Class of Accuracy: 1.0 / 0.5S / 0.2S
High Surge Voltage withstand capability up to 8 kv.
Four Quadrant Energy Measurement.
Up to three Maximum Demand registers.
Tamper/ Fraud Detection
Multiple Tariff Capability
Self-Diagnostics
Secure TOD Meter
Premier an innovation in the field of industrial metering backed by over a decade of experience in precision metering system. Premier offers a unique approach to the energy metering system and data collection, TM combining the reliability of CALMU technology with cutting edge of information technology, Premier provides you the optimum metering solutions. The Premier offers:
- A true four quadrant metering
Choice of accuracy: 0.2s, 0.5s and 1.0- 5 main energy registers for import only and 8 main energy registers for true import & export metering
- Time of day metering
- Large backlit LCD display with parameter identification
- Phase indicators for healthiness of phase voltages
- Scroll lock display for continuous display of desired parameters
- Advanced tamper detection algorithm including missing voltage,invalid voltage, voltage unbalance, current polarity reversal, current unbalance, current open circuit*, current short circuit* and abnormal magnetic influence events
- Compartment wise tamper event logging
- Inductive coupled external power pack for meter reading in the absence of supply
- Load survey configurable for main energy registers and instantaneous parameters
- Load survey integration periods of 15, 30 and 60 minutes
- Optical communication port for electronic reading
- RS232 or RS485 port (RJ11 connector for easy connection) via optional module
- Up to 4 user configurable pulse outputs via optional module
* Only available for 3 phase 4 wire meters
